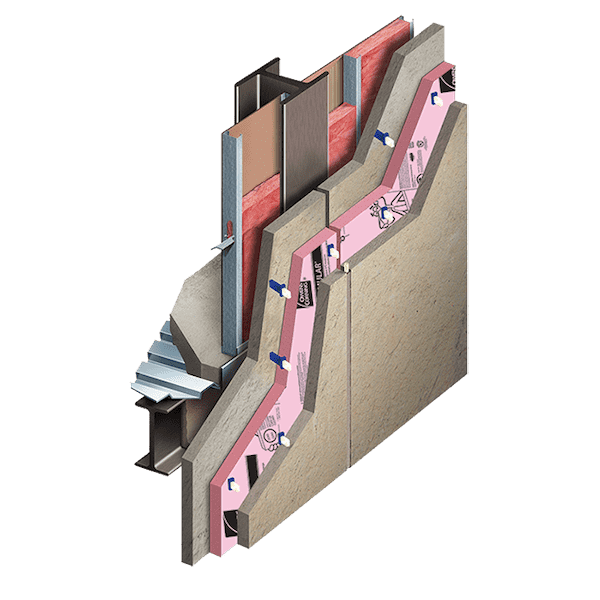

ChangeCONCRETE PANEL Precast Concrete Wall, NC Thermomass® non-composite insulated concrete panel wall
This Enclosure Solutions Wall System includes a Precast Concrete Wall with XPS insulation layered in the core, also known as a non-composite insulated concrete sandwich wall.
Get all the construction documentation you'll need, in a single click:
Sold Separately
Durability
Energy Conservation
Moisture Management
Thermal Comfort
ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
Learn More
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
Learn MoreThis wall assembly enclosure also meets the following codes and standards. Click a standard to learn more
Construction Details including CAD drawing files for Precast Concrete Enclosure Solutions Wall Systems are available for download at our partner Thermomass' website. <a href="http://www.thermomass.com/details/">CAD Drawings and BIM objects</a> and <a href="http://thermomass.com/resources/specifications/">Specs</a>
The time consuming work of researching and specifying individual products is completed for you and delivered with fully detailed documentation, for more efficient and accurate bidding and planning. Get all the construction documents you need in a single click:
