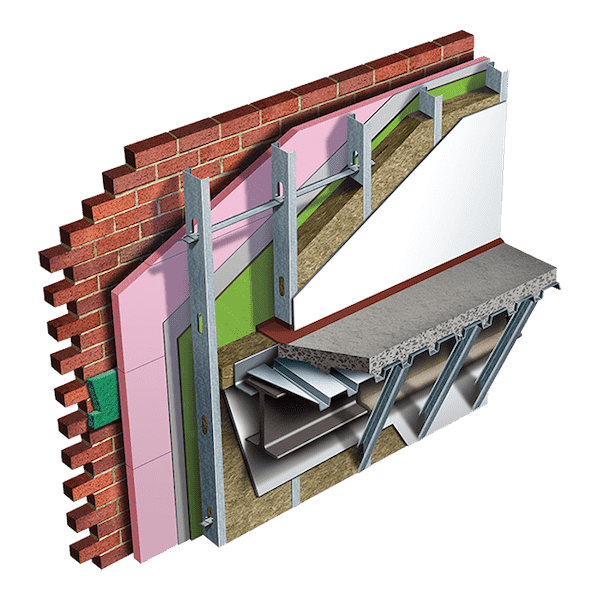

ChangeCURTAIN WALL CW-S-1016 Thermafiber® Steel-Framed Curtain Wall Perimeter Fire Containment System
The Thermafiber® Steel-Framed Curtain Wall Perimeter Fire Containment System, CW-S-1016, will serve any typical building situation with an F-rating of up to two hours.

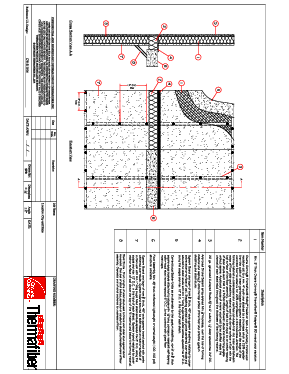

Get all the construction documentation you'll need, in a single click:
FIRE CONTAINMENT
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
LEARN MORE
The 2015 International Building Code (IBC), Section 715.4, requires approved perimeter fire containment systems at the intersection of the non-rated exterior curtain wall and the fire-resistance-rated floor assemblies. Although local codes may vary, generally fire resistance rated floor/ceilting assemblies are required in construction types I-A, I-B, II-A, III-A and V-A.
LEARN MORE
The UL Fire Resistance Directory is a highly recognized document in the fire stopping industry.
LEARN MORE
The time consuming work of researching and specifying individual products is completed for you and delivered with fully detailed documentation, for more efficient and accurate bidding and planning. Get all the construction documents you need in a single click:
Even though we’re a global company, we’re always ready to answer your questions. Call to speak with an Owens Corning representative so you can start your project right away.
1-800-GET-PINK®
