20149
ChangeSTEEL STUD WALL Masonry Veneer High Compressive Strength Mineral Wool ci with Fluid or Sheet AWB

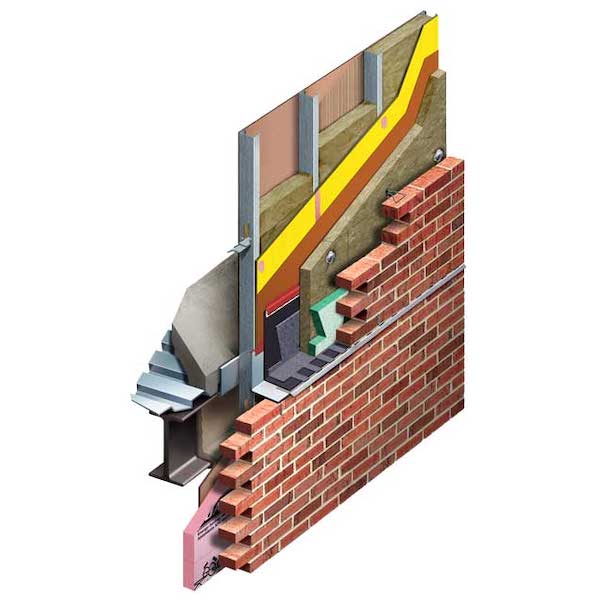

This Enclosure Solutions Wall System includes a steel stud structure with masonry veneer, exterior sheathing, high compressive strength mineral wool ci & mineral wool cavity batt insulation. Complies with ASTM E2357 (air), & ASTM E331 (water).
Get all the construction documentation you'll need, in a single click:
368e.jpg)
Sold Separately
With CavityComplete® Wall Systems, you can efficiently specify and detail quality assemblies with components that are completely compatible, code compliant, and warrantied to perform together.
Fire Resistance
Sound Reduction
Recycled Content
Thermal Comfort
ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.
Learn More
ASTM E2307 measures the ability of perimeter fire barrier systems to maintain a seal and prevent interior fire spread as the exterior wall assembly deflects and deforms during fire exposure. The ASTM E2307 test exposes the joint to fire from the room of fire origin and the exterior wall to fire from both the interior and the exterior as the fire plume exits the room of fire origin through a window opening. ASTM E 2307 determines the period of time that the perimeter fire containment system will limit flame penetration through the opening between the exterior wall assembly and the floor assembly.
This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more
Construction Details including BIM objects and CAD drawing files for Steel Stud Enclosure Solutions Wall Systems are available for download below.
The time consuming work of researching and specifying individual products is completed for you and delivered with fully detailed documentation, for more efficient and accurate bidding and planning. Get all the construction documents you need in a single click:
Even though we’re a global company, we’re always ready to answer your questions. Call to speak with an Owens Corning representative so you can start your project right away.
1-800-GET-PINK®
